Priority Controller

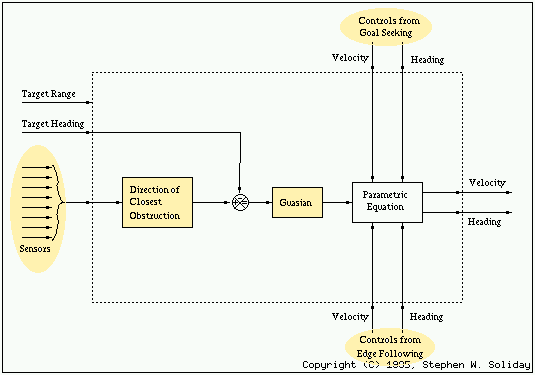

Figure 13.6: Priority Subsystem
Click inside any shaded region in the image to expand the section

Return to the Overall Diagram

The heart of this thesis is the hypothesis that no one paradigm can act as a Black-box. The Priority controller is a fuzzy device that decides whether the vehicle should be edge-following or goal-seeking. The results section, provides a graphical example of what happens when only edge-following or only goal-seeking is used. It then illustrates how the intelligent switching between the two allows the objective to be achieved.

< previous | contents | next >

This module is part of a robotics simulation that was demonstrated in a Master's Thesis entitled:

A Subsystem Approach to Developing a Behavior Based Hybrid Navigation System for Autonomous Vehicles

The thesis was defended by Stephen W. Soliday, Dec 1995, at the Department of Electrical Engineering at North Carolina A&T State University. Goal seeking edge Follower Bearing and Distance of closest obstruction Infleuence of the Obstruction
